ZD D2S Charger

Portable home charger for ZD D2S

• Power 3.6 KW
• Current 16A 1 phase
• Voltage: 110V-250V
• Charging current: 6A/8A/10A/13A/16A adjustable

Instructions for use

Adjust the current setting by pressing the button. While adjusting the current, the power plug must be connected. After selecting the appropriate current, connect the charger to the port of your ZD D2S and start charging.

Intelligent control remembers your preferred settings

Once you select the recommended current for your ZD D2S electric car from 8A, 10A, 13A or 16A, the charger will automatically set the same level for your next charge.

Detailed LED display provides information at a glance

Easily read the convenient charging temperature, current, time, and power status in kWh on the display.

5 safety features that protect your vehicle

The surge box protects against leaks, high or low voltage, overload, lightning, and overheating.

If the internal temperature of the control box exceeds 85°C, the over-temperature protection will be activated and charging will stop.

After the temperature drops to 70°C, charging will resume.

Do not plug into a power strip or adapter. Connect the charger to the wall outlet.

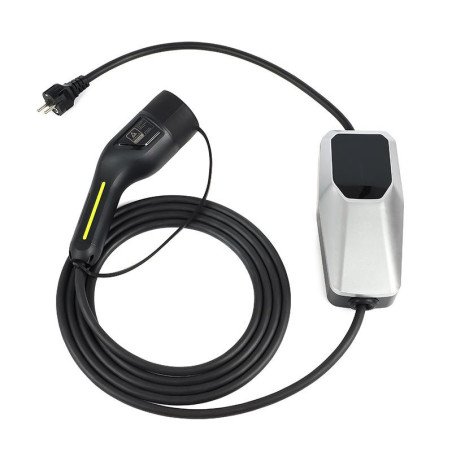

Illustrative image, the charger that is sent may be of a different shape or color than the one shown in the image
